Quartz EM

EM security detection system

With its sandwiched plexiglass plates in combination with a solid stainless steel powder coated base construction, the Quartz EM  system is a great answer to a modern library environment.

The Quartz EM system reduces unauthorized removal of library items by detecting the EM tags in any orientation.

Features

  • Fully digital configuration (DSP)
  • Visual and audio alarm
  • Advanced electromagnetic (EM) technology
  • Remote maintenance
  • Magnetic media safe
  • Multiple gate solutions are possible



Optional: people counter



Specifications

Quartz EM

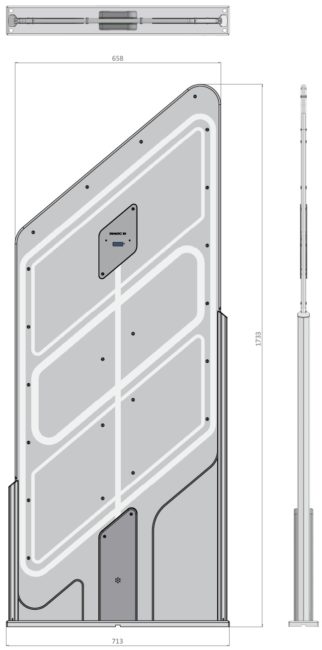

Dimensions:
Antenna:  657,5  x  18  x 1731 mm  (w x d x h)
Base     :     709  x  96  x     10 mm  (w x d x h)

Weight: 32 kg

Detection:
Depending on the type and size of EM tag
• Single aisle width System 2: up to 0.90 meter
• Dual aisle width System 3  : up to 1.80 meter

EM specification:
Operating frequency: 366 Hz.
Supported tags: all Dialoc ID EM tags and various EM tag suppliers

Certifications:   CE / EMC

Option:

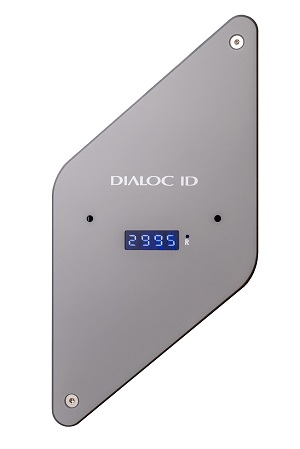

• Bi-directional people counter with or without display

Interface:
CAN
Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool.

Material:
Panel: Sandwichplate of PMMA 18mm plexiglass, weather and UV resistant,
92% light transmission
Base : Powder coated stainless steel



Download brochure
