Sapphire™ EM Self-Service

Sapphire EM Self Service

Sapphire EM Self-Service

Circulation system

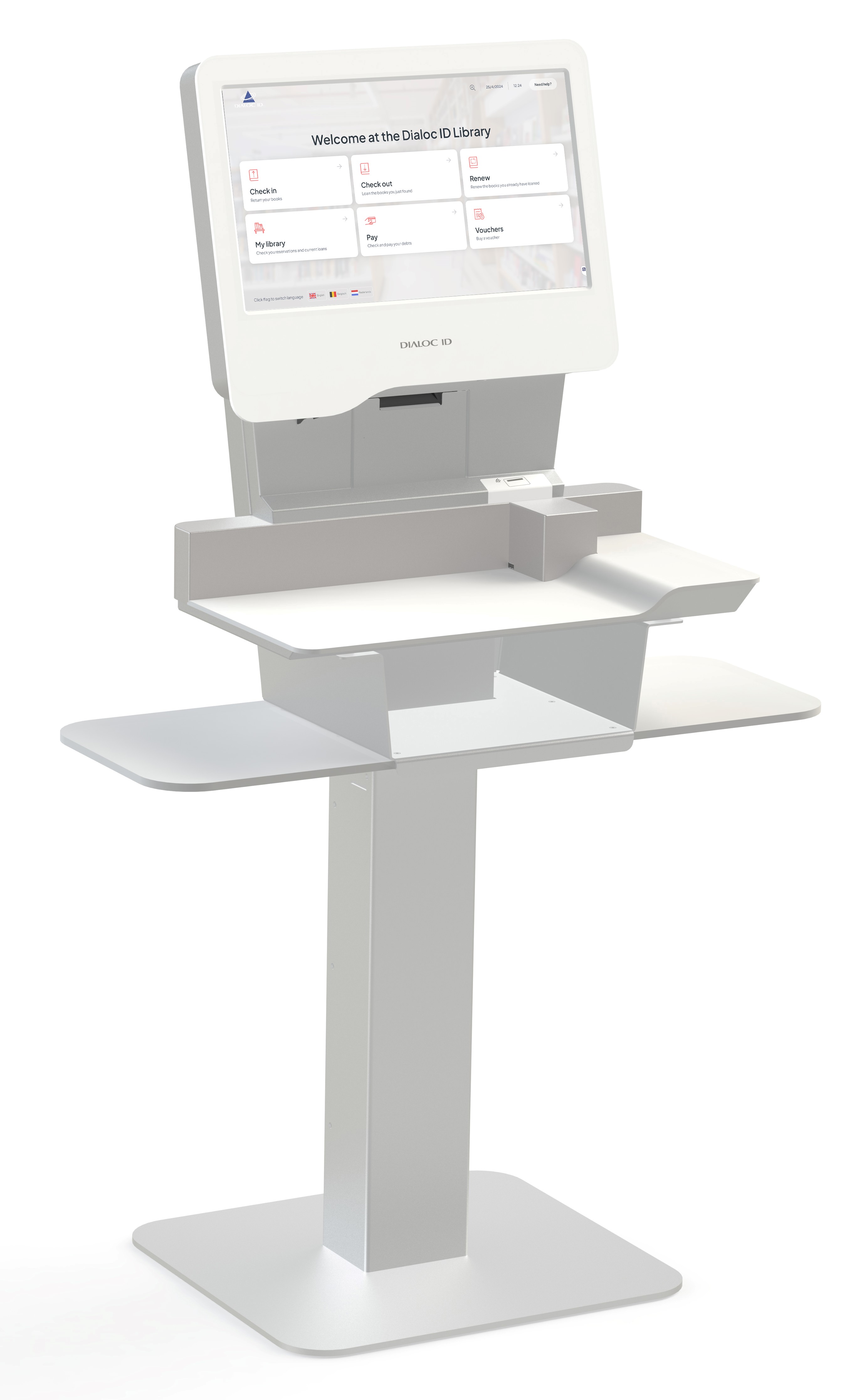

The Sapphire is an ergonomically designed high-tech self-service unit that fits perfectly into the logistic process. It’s modular construction gives all the flexibility to libraries who want to migrate to different identification technology today and in the future.

The Sapphire EM self-service unit seamlessly combines barcoding technology for the identification of items and patron cards with EM technology for optimal security of items by (de) activating the EM tags after successful registration of items. This simple, one-move handling improves efficiency, accuracy and security in a user friendly environment.

By using LIS (LED Information Service) this unit gives detailed status information to the user about the status of the working process.

The workpad distinguishes 3 color modes:

  • BLUE:                   in operation
  • GREEN:                access granted, proceed
  • RED:                     cannot proceed

The 22” HD touch screen together with the integrated receipt printer, EM (de)activator, barcode scanners for items and cards are designed in one compact stylish high-quality housing, and therefore easy to relocate in a library.

MyLib® Software with improved performance

The self-service unit comes standard with our MyLib® full circulation software including check-in, check-out and renew functions, preconfigured to connect to an LMS (Library Management Software) through SIP2 which is completely supported.

Sapphire EM Self Service


Sapphire EM Self-Service


  • Height : 663 mm
  • Width :  638 mm
  • Depth :  568 mm

Material: Stainless steel, PS, high-impact composite

Weight: 37 kg

Functions: Self-service: Check-in / check-out

Compatibility: SIP2

Certifications:   CE / EMC

Check-in / check-out materials:  Books / Magazines / Media

Touch PC:
High quality 16: 9 Full HD 22″ LCD touch screen, with a wide view angle VA panel.
Dust and water proof. (IP65), Chipset: Intel®  QM77, CPU: Intel® 2nd and 3rd generation Intel Core™ i3, i5, i7, mobile processor TPD > 35W

Thermal line printing with a 180 dpi print head,  print speed of 250mm/second,
assuring crisp, clear receipts and eye-catching logos.

Item Identification: barcode imager
Patron identification: barcode imager
Item protection: EM technology. (EM (de) activator)

Dialoc ID MyLib® software pre-installed and pre-configured. It supports LMS/ILS protocols SIP2 and is data model independent. Access to the library network via Ethernet is required.

Power: 230 V
Environmental facts: Temperature: + 10ºC <> + 45ºC
