Bin book trolleys

Circulation system

Dialoc ID designs and creates optimal effectiveness in material handling in any library environment.

No more bending: easy access to the contents of the trolley for ergonomic working in libraries. The bin book trolleys are used in libraries for collecting books in combination with sorting machines, bookdrops or similar collection/returning points.

Features

• sturdy, generously dimensioned edge and floor profile, highstrength positive locking ensures permanent bonding to jacket metal
• edge profile reinforced with abrasionresistant plastic padding
• trolley with vertically moveable base which keeps the load at constant height for easy access
• depending on the trolley type, load capacity can vary from 30 till 150 kg in steps of 15 kg by means of replaceable lifting elements
• the moveable base does not tilt, even when loaded on only one side
• wheels Sapphire Bin: 2 swivel and 2 fixed castors, 125mm, 40mm wide, easy running rubber wheels, “nonmarking”, ball bearings
• wheel Ruby Bin: 4 swivel, 25mm, 40mm wide, easy running rubber wheels, “nonmarking”, ball bearings
• castors arranged centrally for easy manouvering, even in tiny spaces
• anodized aluminum

Available dimensions

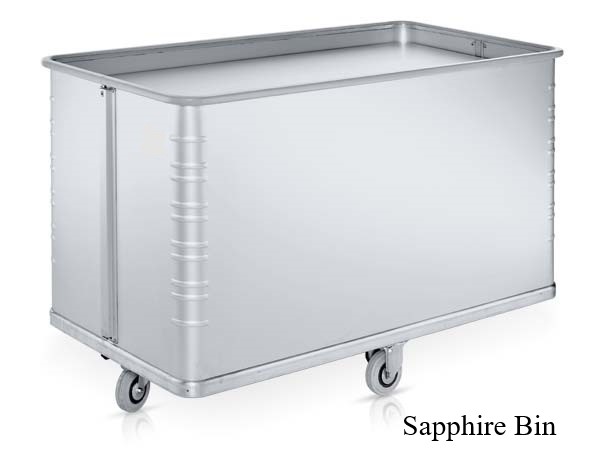

Sapphire Bin
LxWxH (mm)                             Vol (lt)       Weight (kg)               Load capacity (kg)
Bin 1) 1060 x 710 x 820            325               24,5                               90
Bin 2) 1060 x 470 x 800            195               21                                  30
Bin 3) 1060 x 650 x 800            280               25                                  45
Bin 4) 1460 x 750 x 920            570               31,5                               150

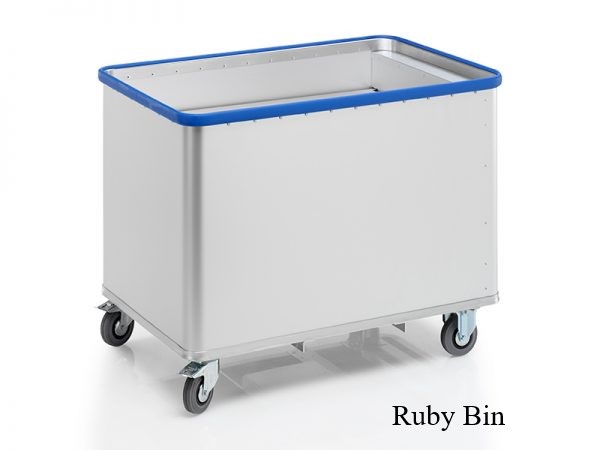

Ruby Bin
LxWxH (mm)                             Vol (lt)       Weight (kg)               Load capacity (kg)
Bin 1)   855 x 550 x 760            180               34                                  50
Bin 2) 1115 x 690 x 855             380               42                                 100
