Pentor 3030™

Pentor 3030



Pentor 3030

EM security detection system

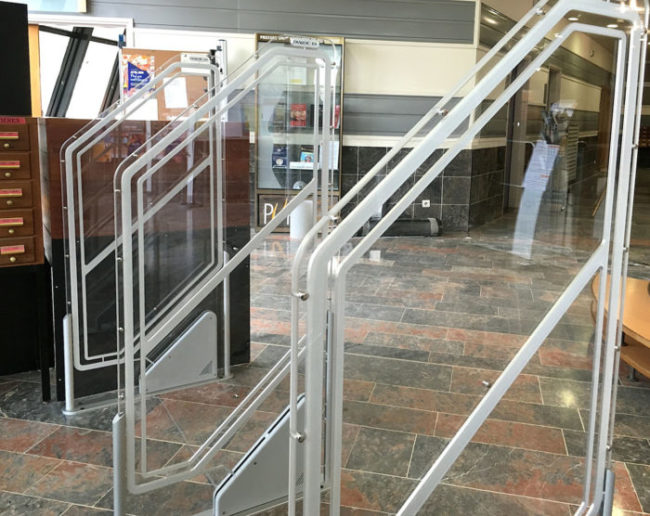

The Pentor 3030 system provides crystal clear protection to libraries who require optimal performance and transparency. The scratch-resistance acrylic panel with multi-wire construction offers the most refined design in any library décor.

The Pentor 3030 system reduces unauthorized removal of library items by detecting EM tags and using high quality advanced EM technology.



Features

  • Fully digital configuration (DSP)
  • Visual and audio alarm
  • Advanced electromagnetic EM technology
  • Remote maintenance
  • Magnetic media safe
  • Multiple gate solutions are possible
Pentor 3030

Specifications

Pentor 3030

Antenna dimensions:

  • Height : 1490 mm
  • Width  :   732 mm
  • Depth :     18 mm

Antenna base dimensions:

  • Height :     10  mm
  • Width  :    730 mm
  • Depth :      95 mm

Weight: 25 kg

Detection:
Depending on the type and size of EM tag
• Single aisle width System 2: up to 0.90 meter
• Dual aisle width System 3  : up to 1.80 meter

EM specification:
Operating frequency: 366 Hz.
Supported tags: all Dialoc ID EM tags and various EM tag suppliers

Certifications:   CE / EMC

Option:
• People counter
• Removable antennabase

Interface:
CAN
Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool.

Material:
Panel:  Scratch-resistant clear acrylic
Base  :  Anodized aluminum

Download brochure
